SANNCE PoE Security Camera System 8 Channel NVR Night Vision
SANNCE PoE Security Camera System 8 Channel NVR Night Vision
Couldn't load pickup availability
Keep an eye on your property day or night with sharp 3MP video, recorded audio and an eight-channel PoE NVR.
- Clear detail: Each camera captures 2304 × 1296 resolution, while a 4mm lens gives you a 74.7° horizontal field of view.
- Night coverage: Infrared night vision reaches up to 100 ft (30 m), and Smart IR helps you see after dark.
- Recorded events: Built-in microphones capture audio, while motion detection helps flag activity for review.

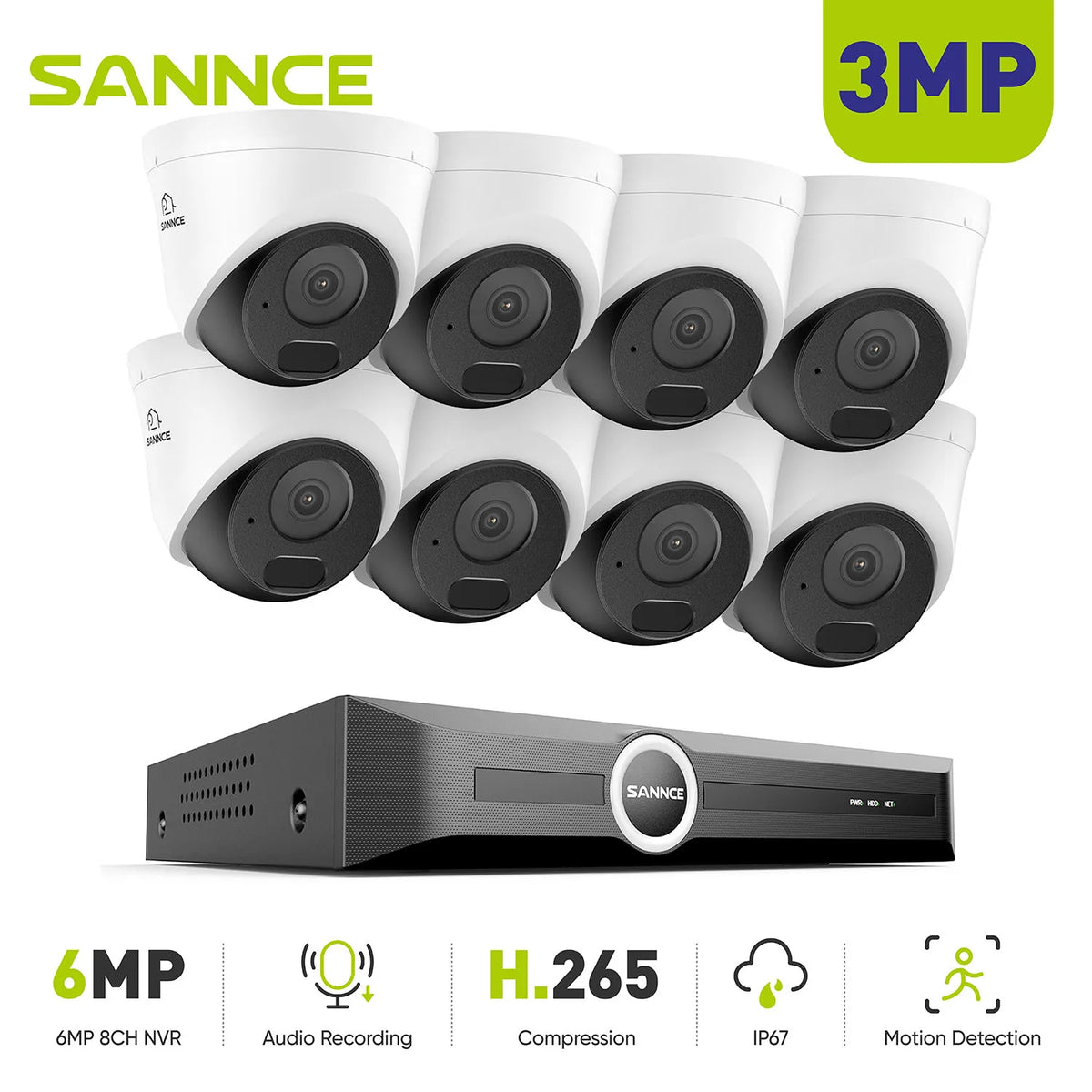

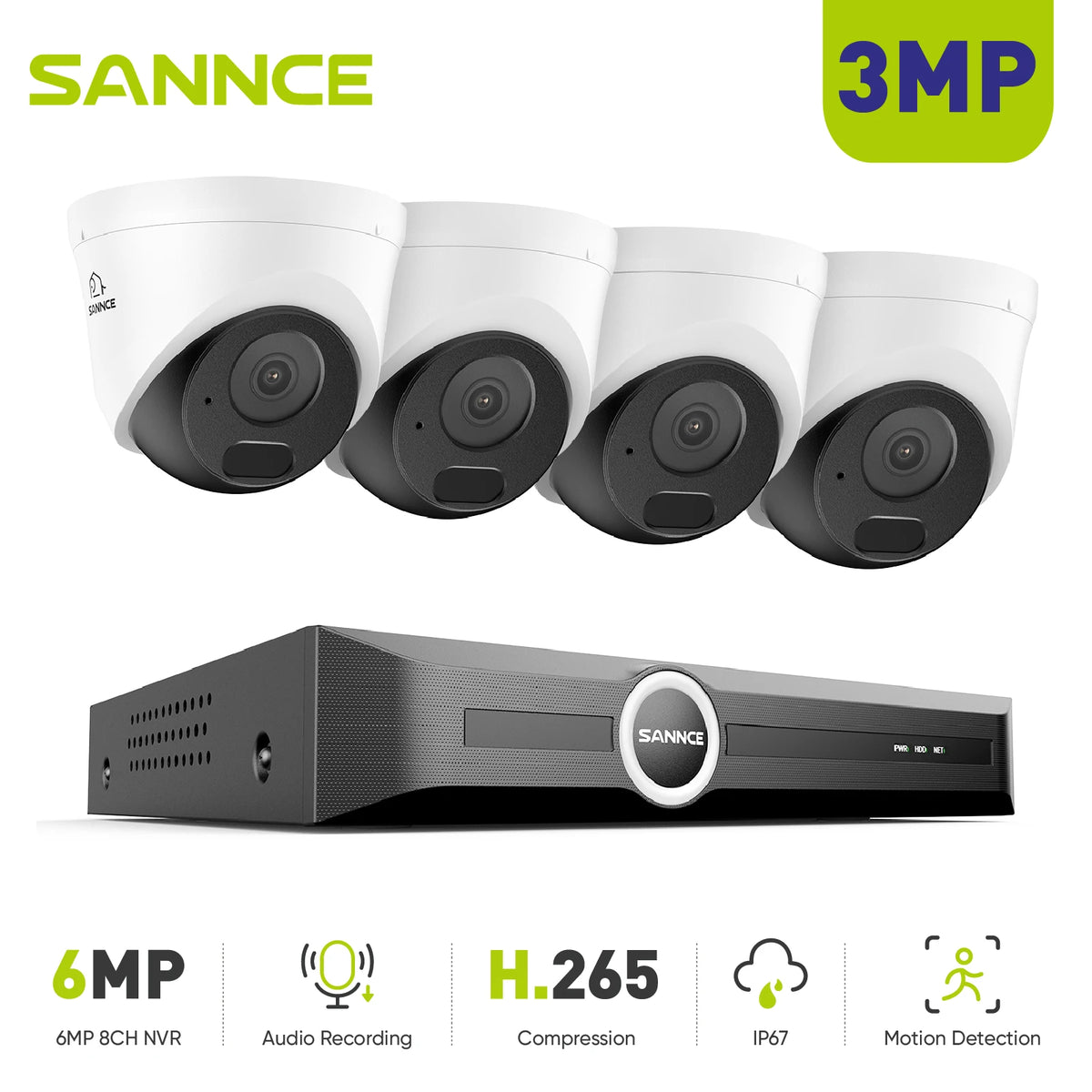

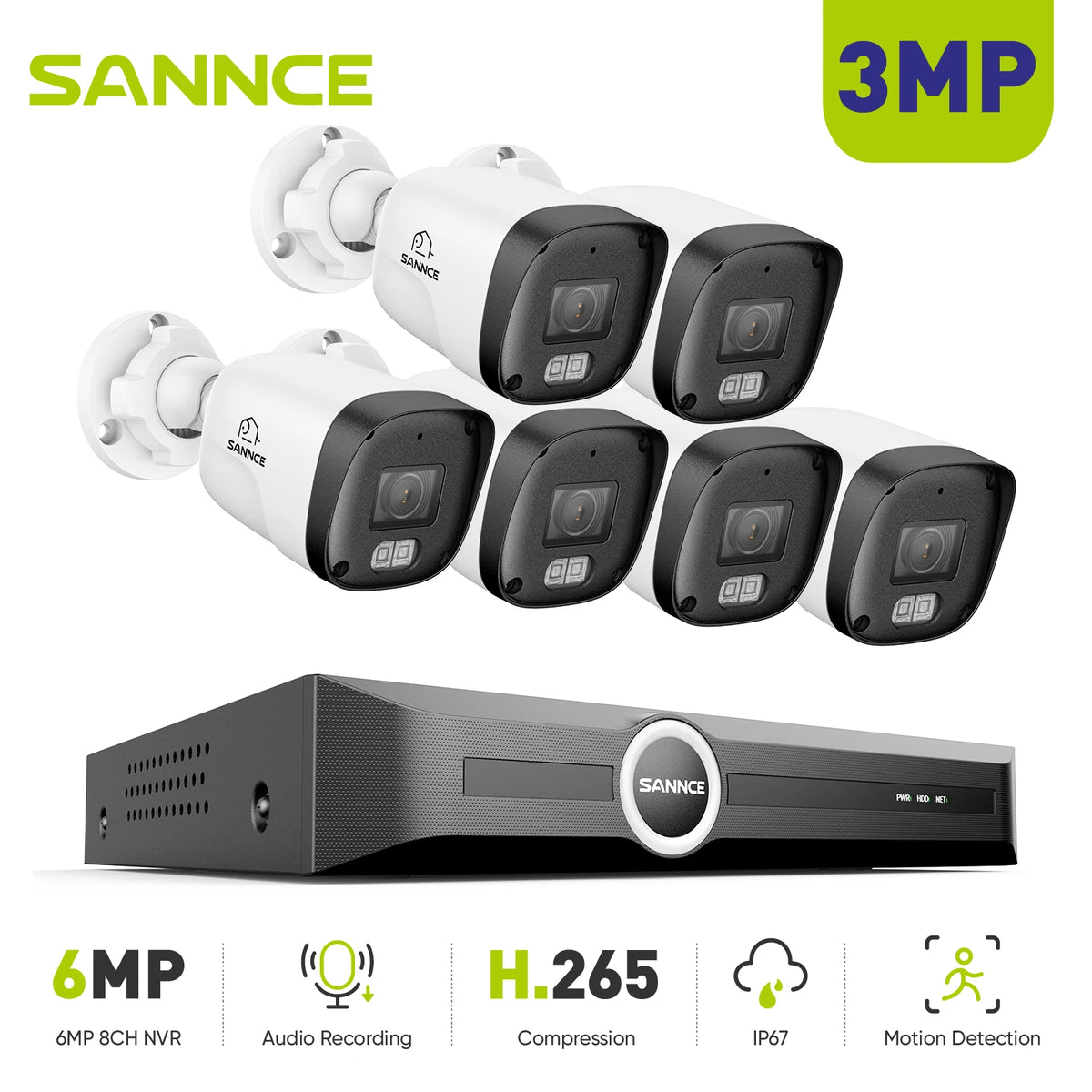

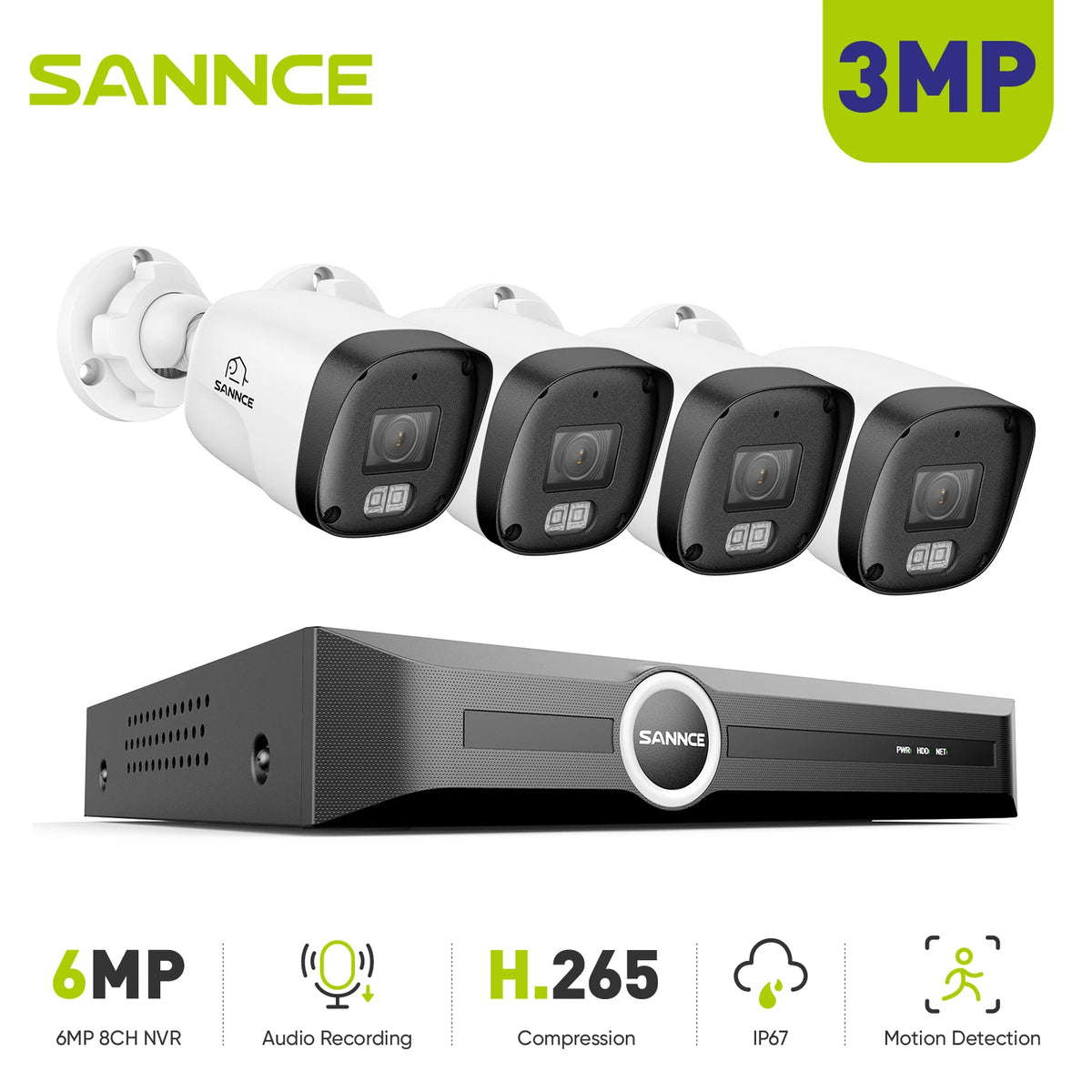

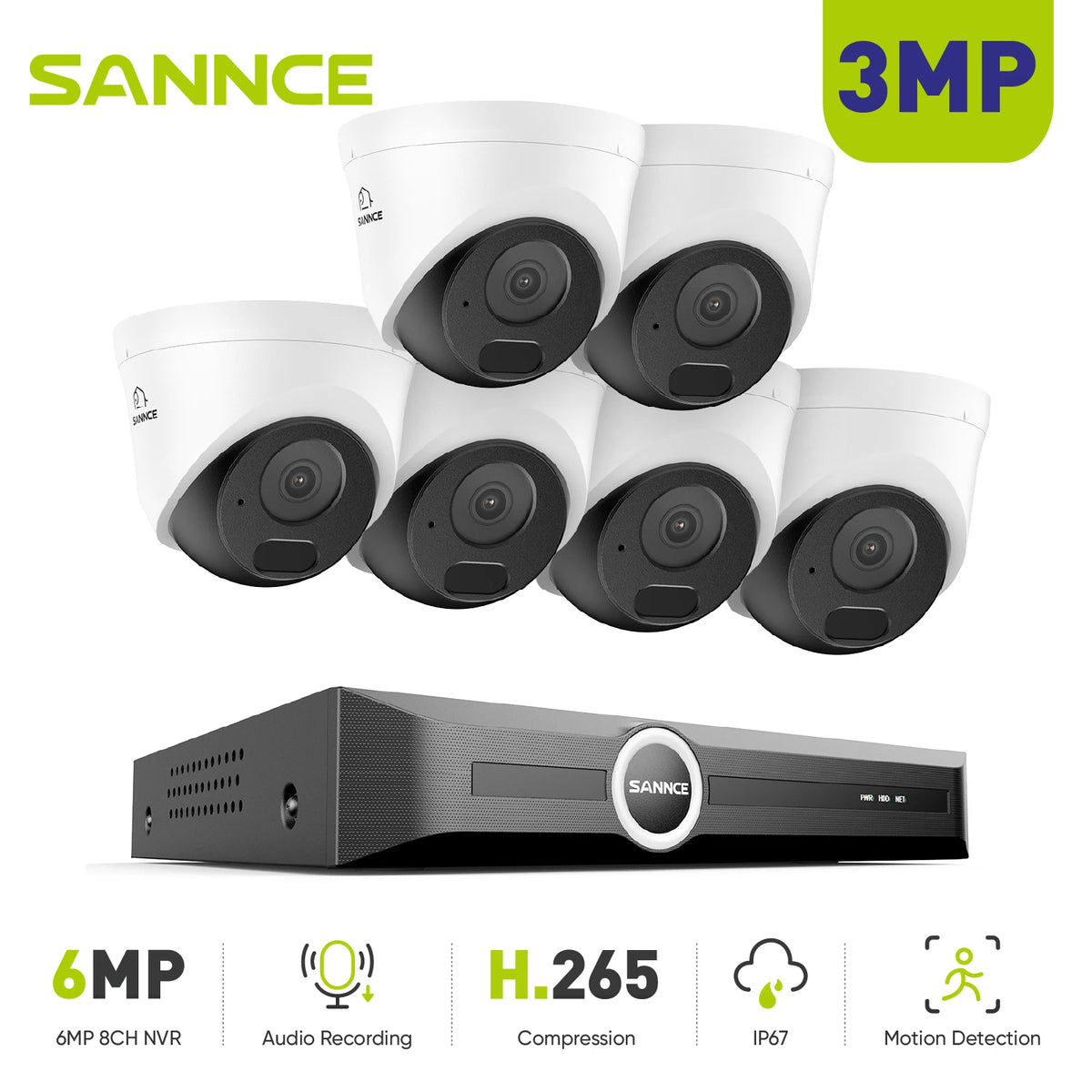

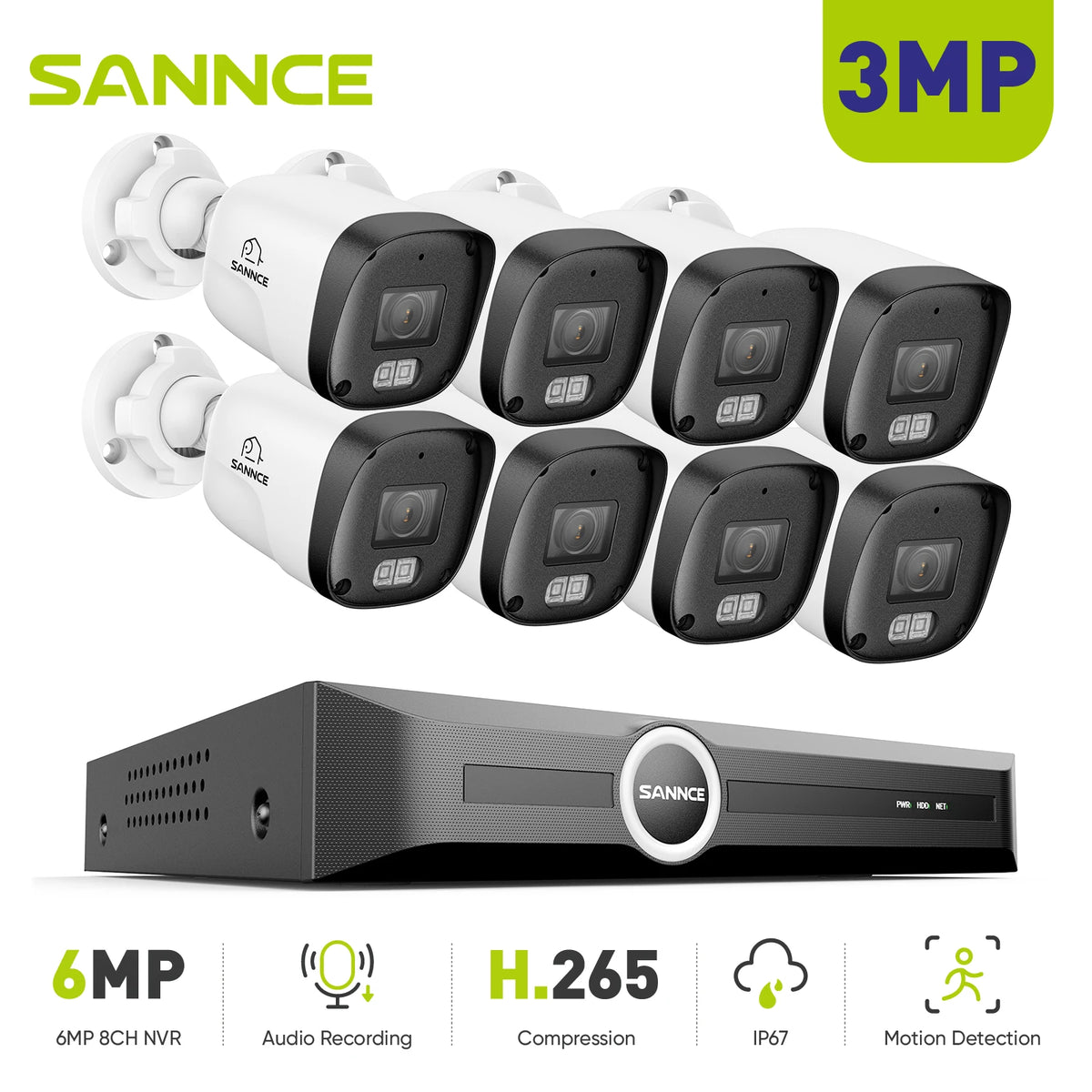

- Flexible monitoring: Choose a 4-, 6- or 8-camera set; the NVR supports up to eight PoE cameras, four-channel synchronous playback, HDMI and VGA output, and one HDD up to 6 TB.
IP67-rated cameras are suited to indoor or outdoor use. S+265 compression can reduce storage use by up to 75%, and the SANNCE Life app supports Android and iOS access.
Model Number | N98PBM | |
NVR | ||
Video & Audio | Decoding Format | S+265; H.265; S+264; H.264 |
IP Video Input | 8CH PoE | |
Video Output | HDMI: 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), | |
VGA: 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), | ||
Audio | G711A; G711U; ADPCM_DIV4 | |
Incoming/outgoing Bandwidth | 60/40 Mbps | |
Max Recording Resolution | Up to 6MP@30fps(Frame rate depends on IP camera)： | |
Max Playback Resolution | Up to 6MP@30fps(Frame rate depends on IP camera)： | |
Third-party Camera Access | ONVIF; RTSP | |
Record Playback | Multi-channel Playback | 4 |
Record Mode | Alarm Recording; Schedule Recording | |
Storage Method | Local HDD | |
Backup | USB storage device | |
Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital | |
Alarm | General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC) |
Exceptions Alarm | Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W | |
Storage | HDD | 1 SATA Interface |
HDD Capacity | Up to 6 TB capacity for each HDD | |
Network | Network Protoco | ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; |
Mobile Phone Access | Android; iOS; P2P | |
System Compatibility | CGI; SDK | |
Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ | |

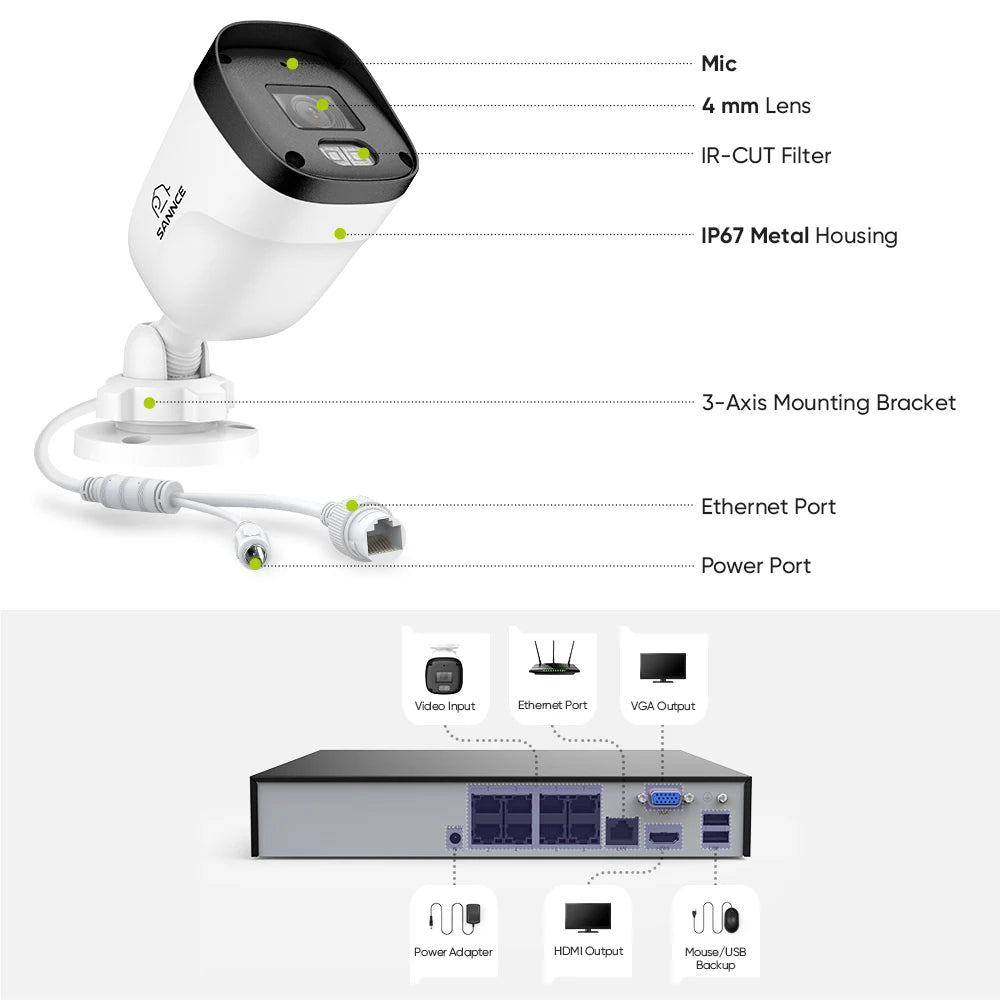

External Port | USB | 2×USB2.0 |
HDMI | 1×HDMI | |
VGA | 1×VGA | |
Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port | |
PoE | PoE Interface | 8×RJ45, 10/100 Mbps self-adaptive Ethernet port |
PoE Budget | 45W | |
Power per PoE Port | 30W | |
Standard | IEEE 802.3 af/at | |
General | UI Language | English;German; French;Italian;Spanish |
Operating Power | DC48V 1.35A | |
Power Consumption | <10W(without HDD&without PoE) | |
Working Temperature | 10 °C to 55 °C (14 °F to 131 °F) | |
Dimensions (W X H X D) | 225 mm × 231 mm × 45.1 mm | |
Weight (Without Hard Disk) | kg | |
IP Camera | ||
Camera | Image Sensor | 1/2.7" Progressive Scan CMOS |
Max resolution | Maximum resolution of main stream: 3MP (2304×1296). | |
Main Stream | 50 Hz: 25@fps（2304*1296, 1920*1080，1280*720,704*576,640*480） | |
Wide Dynamic Range | DWDR | |
Electron Shutter | 1s～1/100000s | |
Image Processing | Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, color to black conversion, white balance, wide dynamic range, electronic fog penetration, 3D digital noise reduction, Smart IR. | |
Min. Illumination | Color 0.05 lux (@F2.0,AGC ON)；B/W 0.01 lux (@F2.0,AGC ON)；0 lux with IR on | |
Color to B/W Conversion | Support internal synchronization, black and white, color, and timing settings. | |
Video Parameters | The image brightness, contrast, saturation, chroma and sharpness are adjustable | |
Video Blocking | 4 pieces | |
Lens | focal length | 4mm Fixed Focal Length Lens |
Angle of View | Horizontal FOV 74.7°, vertical FOV 41°, diagonal FOV 86.6° | |
Aperture | F2.0 | |
Lens Mount Types | M12 | |
Interface Performance | Network Port | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Audio Port | Built-in MIC (Pickup Distance of 5m) | |
Extended Protocol | Onvif Profile S/T | |
Coding Mode | Video Compression | H.265、S+265、H.264 |
Video Bitrate | 32Kbps~4Mbps | |
Coding Type | BaseLine Profile/Main Profile/High Profile | |
Main Stream Default Bitrate | H.265：2Mbps | |
Transmission Mode | Main and Sub Streams | |
Audio Compression Algorithm | G.711A/G.711U | |
Light Function | Number of Infrared LEDs | 2 pcs |
Night Vision Distance | Up to 100 ft/30 m | |
Other features | IE Access | Built-in Web 6.0 |
IP Address | Support static and dynamic IP addresses, and custom network cards | |
Network Protocol | HTTP，TCP/IP，ICMP，FTP，DHCP，DNS，RTSP，CGI，NTP，UDP | |
System Time Clock | NTP Time Calibration, Time Zone Setting, Daylight Saving Time | |
Remote Administration | Network Remote Upgrade, Parameter Settings, and Configuration Import and Export | |
General Alarm | Motion Detection | |
General Functions | Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat. | |
General | Housing | Plastic |
Color | White | |
Operating Power | PoE (802.3af), Max.3W(Turn on the infrared） | |
Operating Temperature | -22 °F – 140 °F/-30 °C – 60 °C | |
Indoor/Outdoor Use | Indoor/Outdoor | |
Interface Protection | IP67, Level 4 Lightning Protection, Surge Protection up to 2KV. | |
Dimension (L X W X H) | 5.51" X 3.23" X 2.36"/ 140 X 82 X 60mm | |
Weight | 0.55 lb./250g | |
